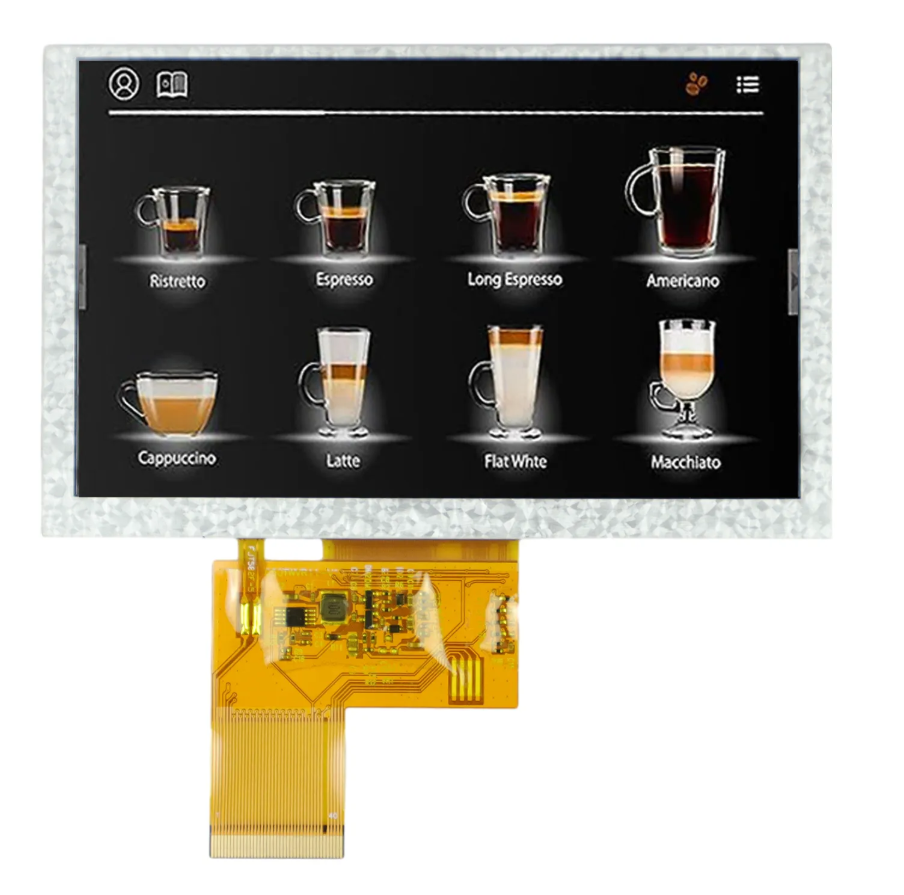

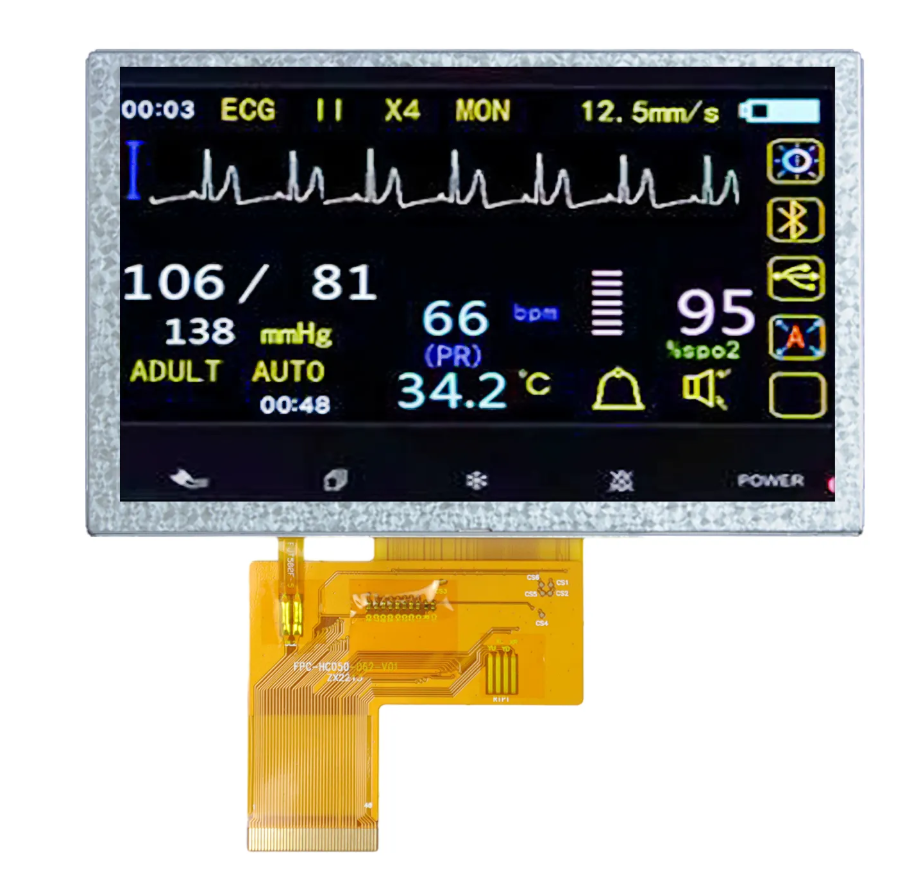

5 inch LCD Display 800x480 (HC050IG40031-B04）

Specification parameters

P/N HC050IG40031-B04
Size 5"(IPS)
Display type IPS
Resolution 800*480
Aspect ratio 16:9
Contrast ratio 1000:1
Outline Dimension(mm) 120,70(W)*75.80(H)*2.90(D)mm
Active Area(mm) 108.00(W)*64.80(H)mm
Brightness(cd/m²） 400cd/m2
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 40PIN RGB
Operation Temp -20~70℃
Storge Temp -30~80℃
Application MotorCycle, Facial Recognition, Color B Mode Ultrasonography  Ultrasonic Detector
