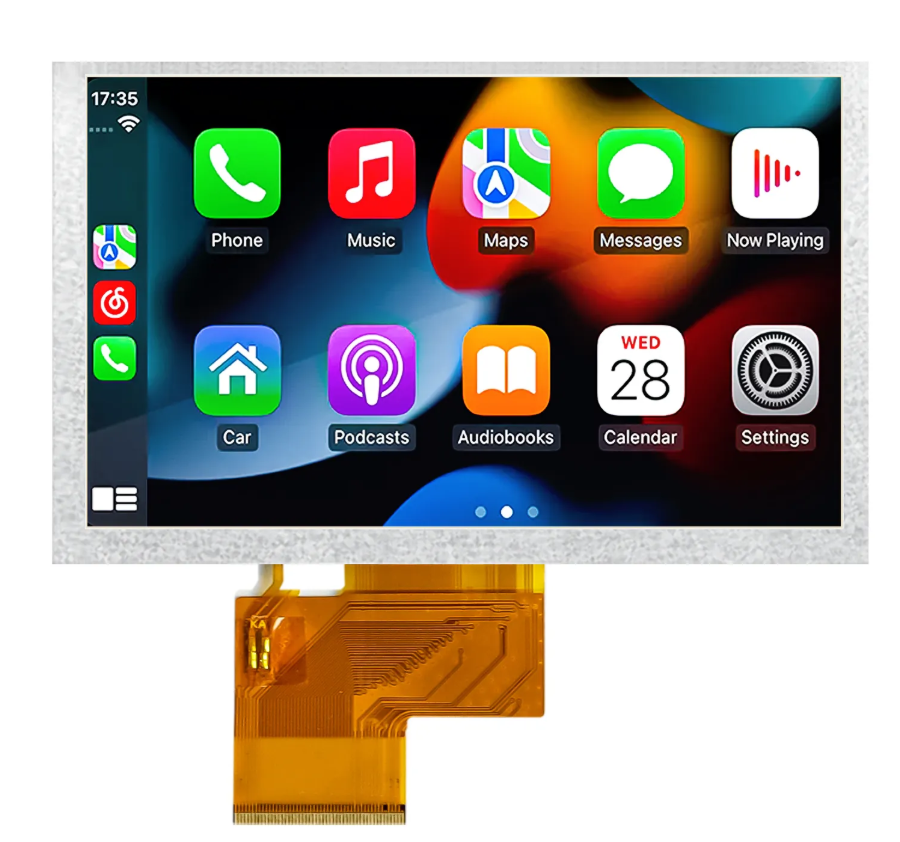

5 inch TFT LCD Module IPS Screen with capacitive touch panel(HC050IG35031-B04)


Specification parameters

P/N HC050IG35031-B04
Size 5"(IPS)
Display type IPS
Resolution 800*480
Aspect ratio 16:9
Contrast ratio 800:1
Outline Dimension(mm) 120.70(W)*76.4(H)*3.10(D)mm
Active Area(mm) 108(W)*64.8(H)mm
Brightness(cd/m²） 400cd/m2
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 50PIN RGB
Operation Temp -20~70℃
Storge Temp -30~80℃
Application Motorcycle Navigator, Car Backup Camera, Desk Smart Printers
