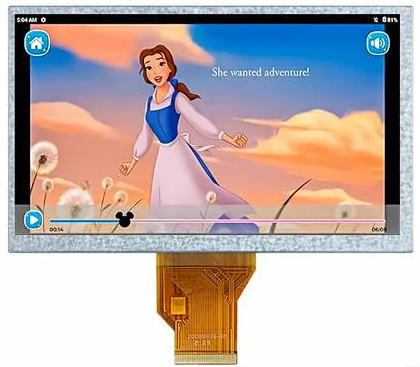

8 inch lcd screen 800*480 (HC080TG80064-54）

Specification parameters

P/N HC080TG80064-54
Size 8"(TN)
Display type TN
Resolution 800*480
Aspect ratio 16:9
Contrast ratio 500
Outline Dimension(mm) 192.8(W)*116.9(H)*7.8(D)mm
Active Area(mm) 176.64(W)*99.36(H)mm
Brightness(cd/m²） 800cd/m2
Viewing Angle(L/R/T/B) 50/70/70/70
Interface 50PIN RGB
Operation Temp -20~70℃
Storge Temp -30~80℃
Application Charging post,Department calling screen,Transportation system
