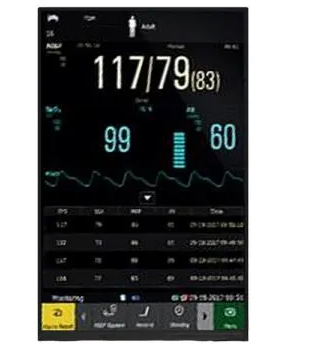

8 inch lcd display with cover glass(HCO80IU68064-A13V.G）

Specification parameters

P/N HCO80IU68064-A13V.G
Size 8"(IPS)
Display type IPS
Resolution 1280*720
Aspect ratio 16:9
Contrast ratio 900
Outline Dimension(mm) 192.8(W)*116.9(H)*8.4(D)mm
Active Area(mm) 176.64(W)*99.36(H)mm
Brightness(cd/m²） 680cd/m2
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 30PIN LVDS
Operation Temp -30~85℃
Storge Temp -40~90℃
Application Charging post,Department calling screen,Transportation system
