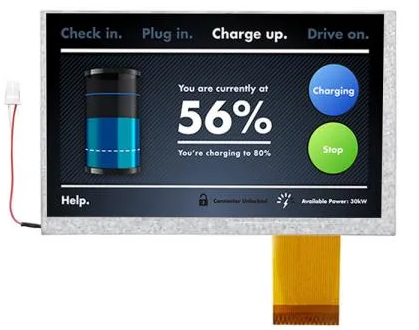

9 inch IPS 1024*600 resolution 40PIN LVDS 1000nits LCD(HCO90IKA0057-C16H）

Specification parameters

P/N HCO90IKA0057-C16H
Size 9.0"(IPS)
Display type IPS
Resolution 1024*600
Aspect ratio 16:9
Contrast ratio 800
Outline Dimension(mm) 211.1(W)*126.5(H)*5,7(D)mm
Active Area(mm) 196.608(W)*114.15(H) mm
Brightness(cd/m²） 1000cd/m2
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 40PIN LVDS
Operation Temp -30~85℃
Storge Temp -30~85℃
Application Charging post,Department calling screen,Transportation system
