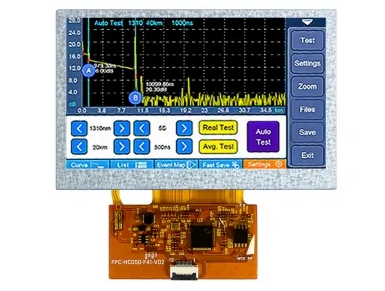

4.3 Inch TFT LCD TN LCD panel 800 x (RGB) × 480 resolution(HC043IG50029-D20)

Specification parameters

P/N HC043IG50029-D20
Size 4.3"(IPS)
Display type IPS
Resolution 800*480
Aspect ratio 16:9
Contrast ratio 1200:1
Outline Dimension(mm) 105.30(W)*67.00(H)*2.90(D)mm
Active Area(mm) 95.04(W)*53.86(H)mm
Brightness(cd/m²） 500cd/m2
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 40PIN RGB
Operation Temp -20~70℃
Storge Temp -30~80℃
Application Enternal feeding pump, Headheld Condensation Practicle Counter For Claen Room
