11.26 inch IPS 440x1920 resolution 40PIN MIPI 500nits bar type LCD (HC113IX50046-N88）

Specification parameters

P/N HC113IX50046-N88
Size 11.26"(IPS)
Display type IPS
Resolution 440*1920
Aspect ratio 1:4.4
Contrast ratio 900
Outline Dimension(mm) 64.98(W)*266.39(H)*4.6(D)mm
Active Area(mm) 57.9(W)*252.69(H) mm
Brightness(cd/m²） 500cd/m2
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 40Pin MIPI
Operation Temp -20~70℃
Storge Temp -30~80℃
Application Charging post,Department calling screen,Transportation system

推荐产品

7 inch LCD Display 1200x1920 with Capacitive Touch Panel (HC070IZ30024-F83V.C）

7 inch LCD Display 1200x1920 with Capacitive Touch Panel (HC070IZ30024-F83V.C）

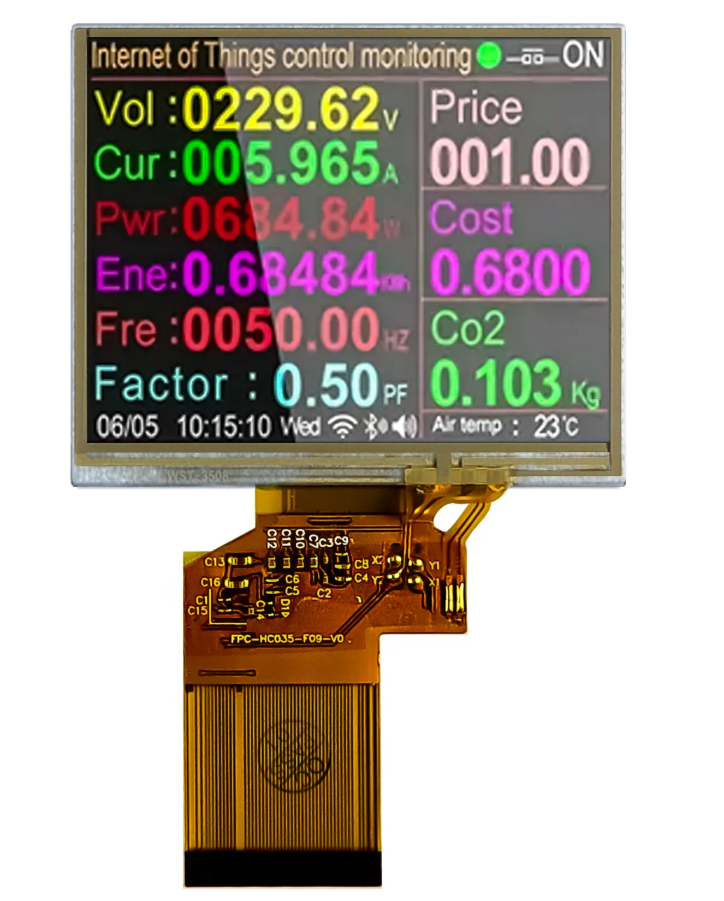

3.5 inch IPS LCD Display Module 320×240 Resolution
