12.3 inch IPS 1920x720 resolution 50PIN LVDS 1000nits LCD (HC123ITA0068-D88）

Specification parameters

P/N HC123ITA0068-D88
Size 12.3"(IPS)
Display type IPS
Resolution 1920*720
Aspect ratio 8:3
Contrast ratio 1000
Outline Dimension(mm) 310(W)*128(H)*6.4(D)mm
Active Area(mm) 292.03(W)*109.51(H) mm
Brightness(cd/m²） 1000cd/m2
Viewing Angle(L/R/T/B) 88/88/88/88
Interface 50Pin LVDS
Operation Temp -30~85℃
Storge Temp -30~85℃
Application Charging post,Department calling screen,Transportation system

推荐产品

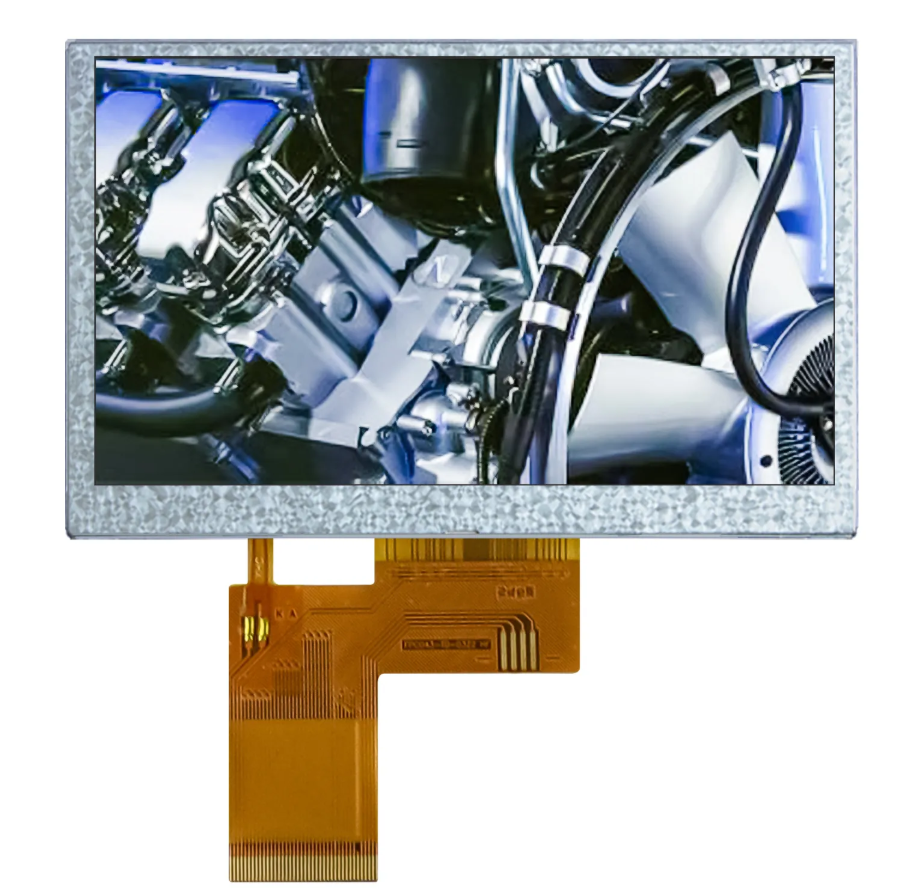

800×480 resolution 4.3 inch IPS TFT LCD panel with RGB interface(HC043IG80030-B56)
