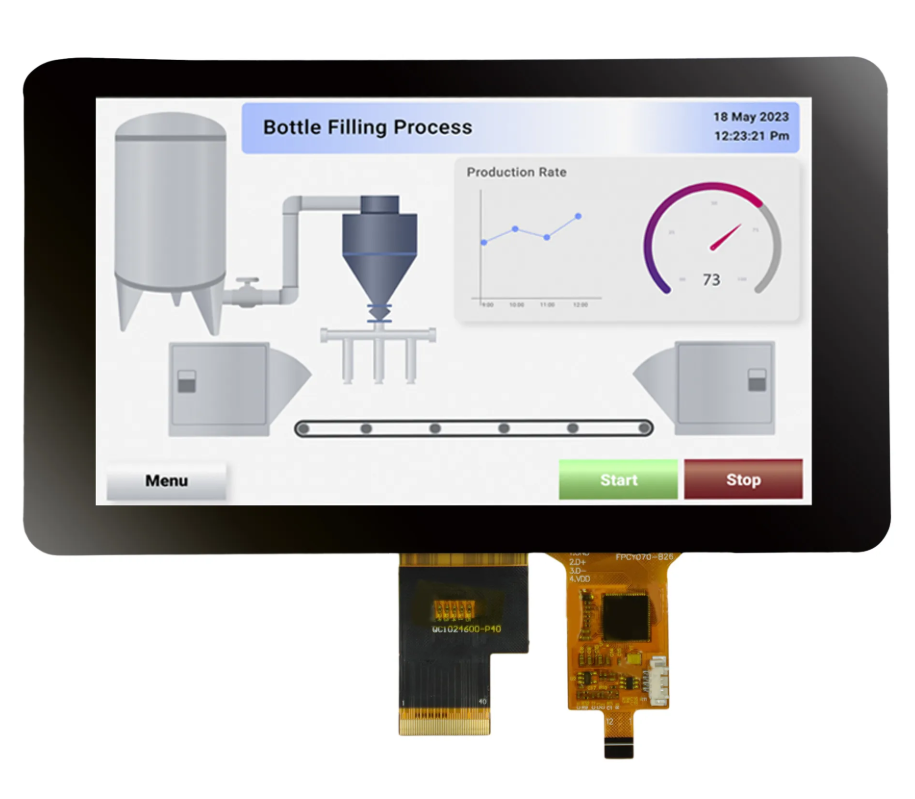

15 inch IPS 1920x720 resolution 60PIN LVDS 900nits LCD with CTP ( HC150IT90093-F72V.C）

Specification parameters

P/N HC150IT90093-F72V.C
Size 15"(IPS)
Display type IPS
Resolution 1920*720
Aspect ratio 8:3
Contrast ratio 1300
Outline Dimension(mm) 379.42(W)*160.05(H)*9.3(D)mm
Active Area(mm) 355.68(W)*133.38(H) mm
Brightness(cd/m²） 900cd/m2
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 60Pin LVDS
Operation Temp -30~85℃
Storge Temp -40~90℃
Application Charging post,Department calling screen,Transportation system
