12.3 inch camera monitor system

Specification parameters

Brand Hetech
P/N HC CMS123001
Size 12.3" (IPS)    8:3
Display mode IPS,Transmissive,normally black
Resolution 1920X720
Outline Dimension(mm) 310(W) ×128(H) ×6.4(D)
Active Area(mm) 292.03(W) ×19.51 (H)
Brightness(cd/m²） 1000cd/㎡
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 50pin LVDS
Constrast ratio 1000:1
Touch panel Optional
Operation Temp -30℃~85℃
Storage Temp. -40℃~90℃
Backlight White LED
Application CMS

推荐产品

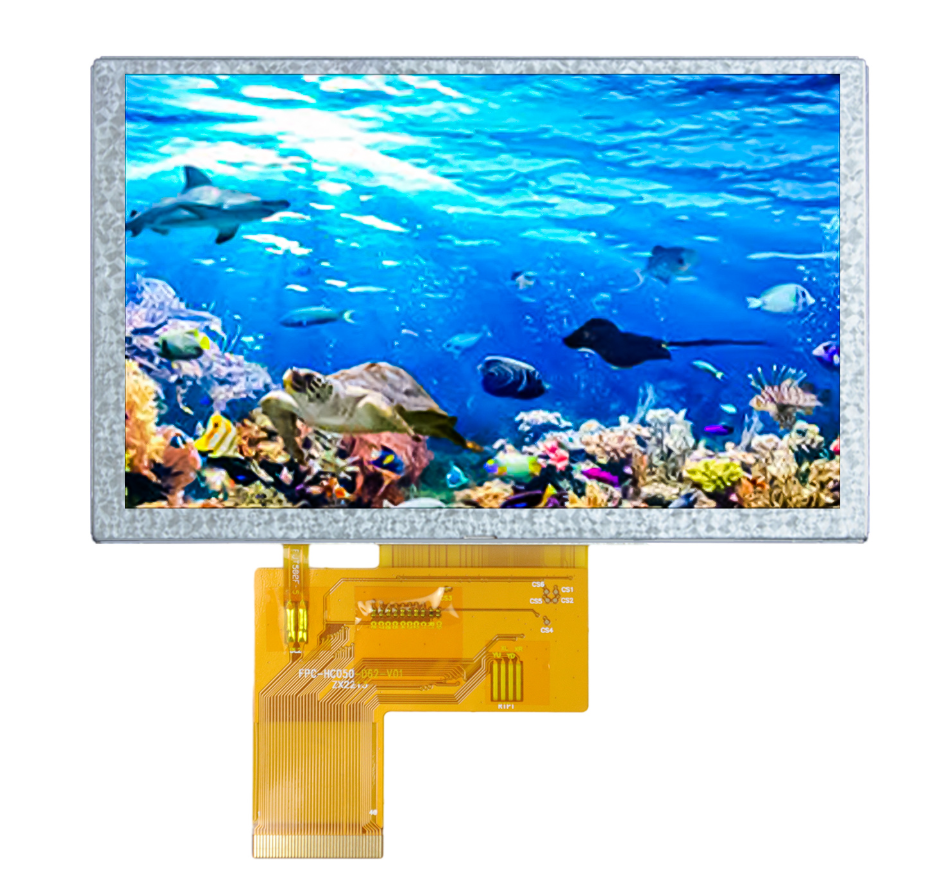

5 inch LCD Display 800*480 2000nits (HC050IGB0031-B04）

5 inch LCD Display 800*480 2000nits (HC050IGB0031-B04）
4.3 inch TFT LCD 480×272 resolution RGB interface(HC043TE50029-B03V02)

4.3 inch TFT LCD 480×272 resolution RGB interface(HC043TE50029-B03V02)
15.6 inch IPS 1920x1080 resolution 30PIN EDP 300nits LCD ( HC156IV30030-C60）

15.6 inch IPS 1920x1080 resolution 30PIN EDP 300nits LCD ( HC156IV30030-C60）

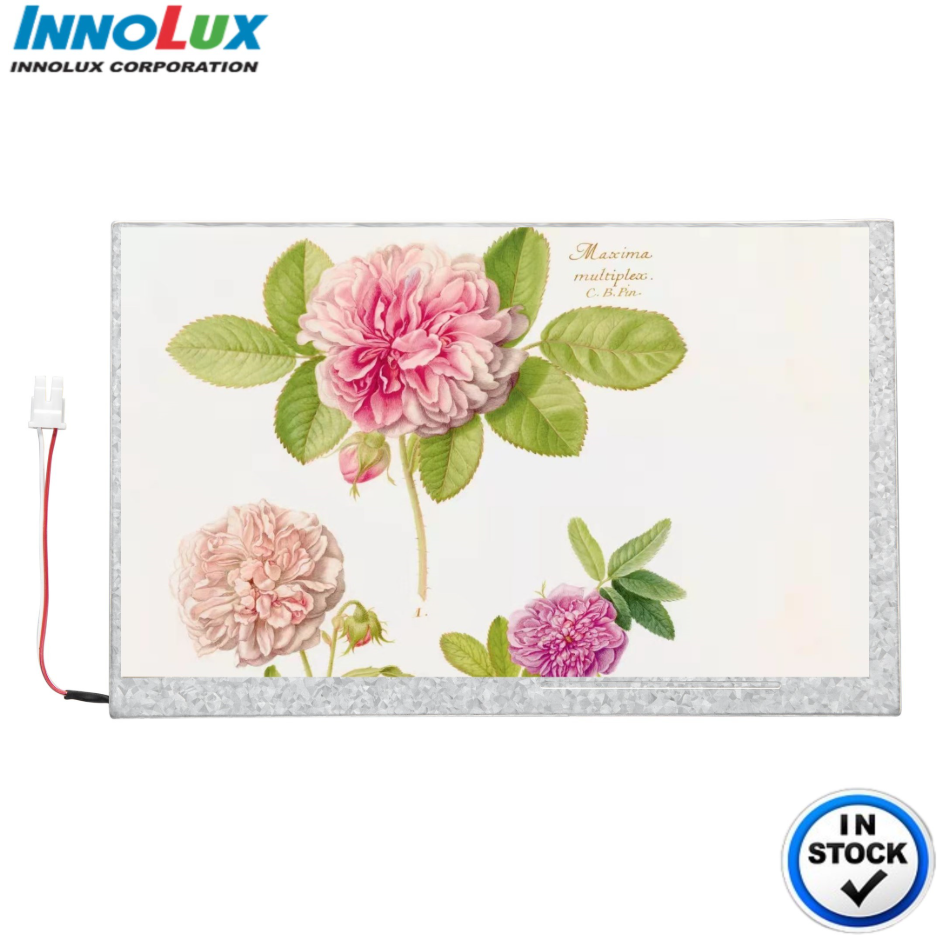

INNOLUX 7 inch tft lcd display 40pin RGB (LW700AT9309)
