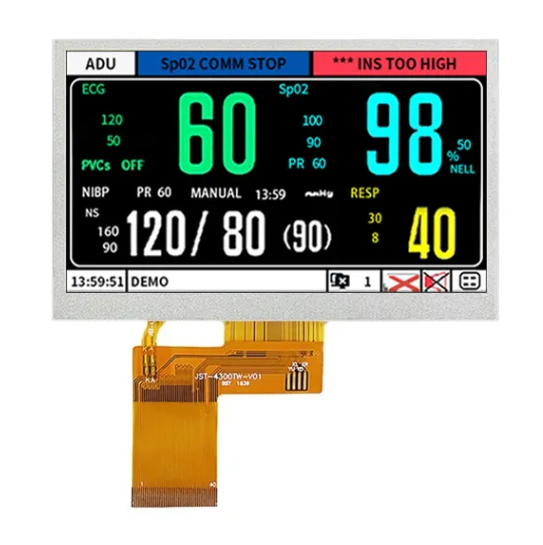

4.3 inch 480x272 LCD display 40pin RGB

Specification parameters

Brand Hetech
P/N HC043TE45031-B03
Size 4.3"(TN)
Display mode TN,Transmissive,normally white
Resolution 480X272
Aspect ratio 16:9
Outline Dimension(mm)
105.5(W) × 67.2(H) × 2.9(D)
Active Area(mm) 95.04(W) × 53.856(H)
Brightness(cd/m²） 450cd/㎡
Viewing Angle(L/R/T/B) 70/70/50/70
Interface 40pin RGB,Parallel 24bit
Constrast ratio 500:1
Operation Temp -20℃~70℃
Storage Temp. -30℃~80℃
Backlight White LED
Application automobile,car diagnostic instrument,electric motorcycle
