HC070IY30025-C18

Specification parameters

Brand Hetech
P/N HC070IY30025-C18
Size 7"(IPS)
Display mode IPS,Transmissive,normally black
Resolution 800x1280
Aspect ratio 10:16
Outline Dimension(mm) 103.46(W) x162.03(H) x2.25(D)
Active Area(mm) 94.2 (W) × 150.72(H)
Brightness(cd/m²） 300cd/㎡
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 40pin MIPI
Constrast ratio 800:1
Operation Temp -20℃~70℃
Storage Temp. -20℃~70℃
Backlight White LED
Application locker，Hardware Encoder,Soil Fertilizer Nutrient Detector

推荐产品

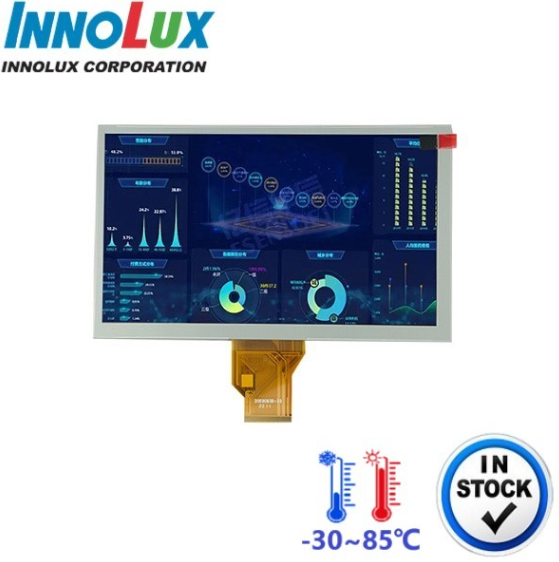

Original Innolux 8 inch 800x480 LCD wide operation temperature with 50pin RGB（AT080TN64）
