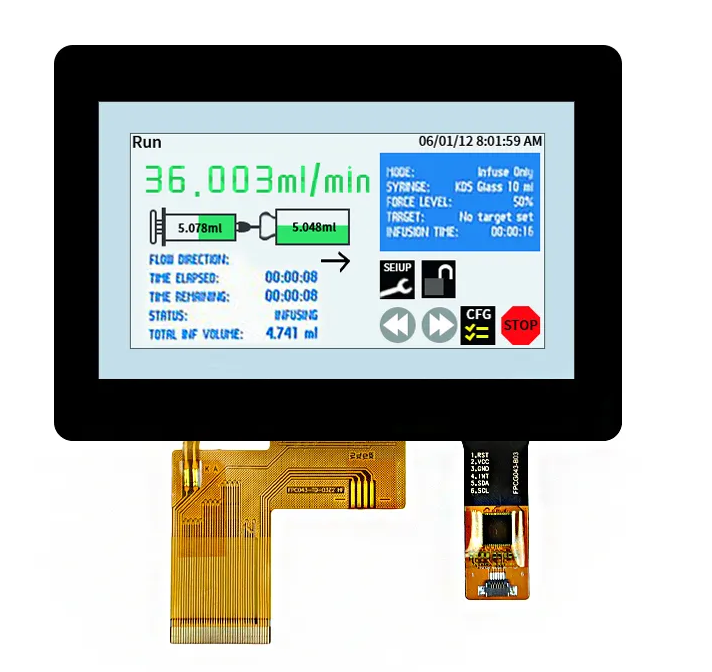

4.3 inch TFT LCD 480×272 resolution RGB interface with CTP(HC043IE50029-D65V.C)

Specification parameters

P/N HC043IE50029-D65V.C
Size 4.3"(IPS)
Display type IPS
Resolution 480*272
Aspect ratio 16:9
Contrast ratio 800:1
Outline Dimension(mm) 105.5(W)*67.2(H)*4.35(D)mm
Active Area(mm) 95.04(W)*53.856(H)mm
Brightness(cd/m²） 450cd/m2
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 40PIN RGB
Operation Temp -20~70℃
Storge Temp -30~80℃
Application Portable Media DVD Recorder, Portable Digital Ph Meter, Lux meter
