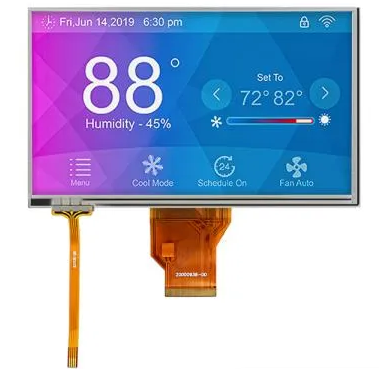

INNOLUX 7 inch tft lcd display 40pin RGB (LW700AT9309)

Specification parameters

Brand INNOLUX
P/N LW700AT9309
Size 7"(TN)
Display mode TN,Transmissive,normally white
Resolution 800X480
Aspect ratio 16:9
Outline Dimension(mm) 165(W) x 104.44(H) x 5.2 (D)
Active Area(mm) 152.4x91.44
Brightness(cd/m²） 350cd/㎡
Viewing Angle(L/R/T/B) 70/70/50/70
Interface 40pin RGB,Parallel 18bit
Constrast ratio 400:1
Operation Temp -20℃~70℃
Storage Temp. -30℃~80℃
Backlight White LED
Application handheld terminals,testing machine,electric bicycle，office printer
