High luminance 3.5 inch TFT LCD touch screen

Specification parameters

P/N HC035IF30032-C37
Size 3.5"(IPS)
Display type IPS
Resolution 640*480
Aspect ratio 4:3
Contrast ratio 800:1
Outline Dimension(mm) 76.84(W)*63.84(H)*3.2(D)mm
Active Area(mm) 70.08(W)*52.56(H)mm
Brightness(cd/m²） 1000cd/m2
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 40PIN RGB
Operation Temp -20~70℃
Storge Temp -30~80℃
Application Digital Doorbell, Multu-Function CCTV Tester, Carbon Dioxide Detector

推荐产品

10.1 inch IPS 1280*800 resolution 40PIN LVDS 650nits LCD (HC101IP65025-A16V01）

10.1 inch IPS 1280*800 resolution 40PIN LVDS 650nits LCD (HC101IP65025-A16V01）
9 inch IPS 1024*600 resolution MINI HDMI &Type C 500nits LCD(HCIKO9OV.CB）

9 inch IPS 1024*600 resolution MINI HDMI &Type C 500nits LCD(HCIKO9OV.CB）

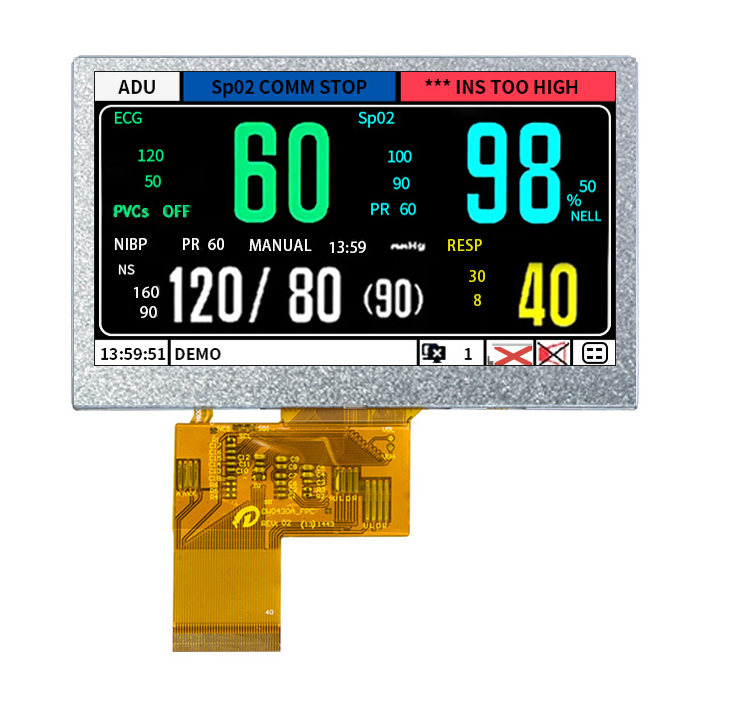

4.3 inch 40pin RGB LCD module for patient monitor(HC043IE50029-B80)
