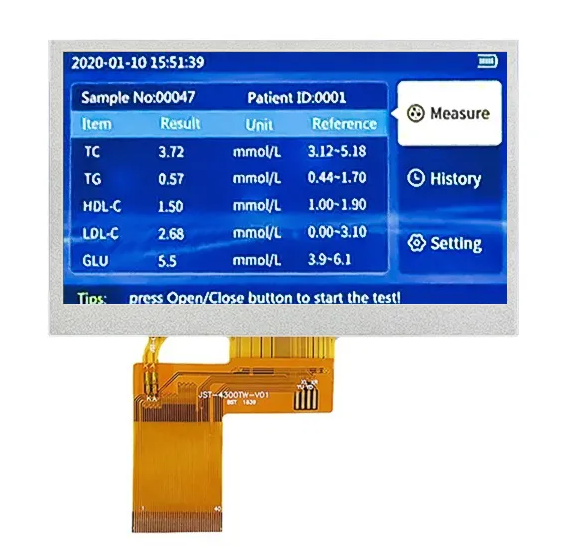

4.3 inch IPS TFT LCD IPS 480x (RGB) ×272 Resolution

Specification parameters

P/N HC043IEA0029-B03H
Size 4.3"(IPS)
Display type IPS
Resolution 400*272
Aspect ratio 16:9
Contrast ratio 800:1
Outline Dimension(mm) 105.5(W)*67.2(H)*2.9(D)mm
Active Area(mm) 95.04(W)*53.86(H)mm
Brightness(cd/m²） 500cd/m2
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 40PIN RGB
Operation Temp -30~85℃
Storge Temp -30~85℃
Application Thermostar homeothermic monitoring system, Automotive Scanner
