5 inch TFT LCD module 800*480 Resolution 108.00*64.8 Active area(HC050IG30029-F41)

Specification parameters

P/N HC050IG30029-F41
Size 5"(IPS)
Display type IPS
Resolution 800*480
Aspect ratio 16:9
Contrast ratio 1000;1
Outline Dimension(mm) 120.7(W)*76.3(H)*4.75(D)mm
Active Area(mm) 108(W)*64.8(H)mm
Brightness(cd/m²） 450cd/m2
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 12 Pi SPI
Operation Temp -20~70℃
Storge Temp -30~80℃
Application GPS Navigation, Broadcast ,X-ray film viewer, DC Resistance Tester Meter

推荐产品

480×800 resolution 5 inch TFT LCD touch screen (HC050TG30029-D12)

480×800 resolution 5 inch TFT LCD touch screen (HC050TG30029-D12)

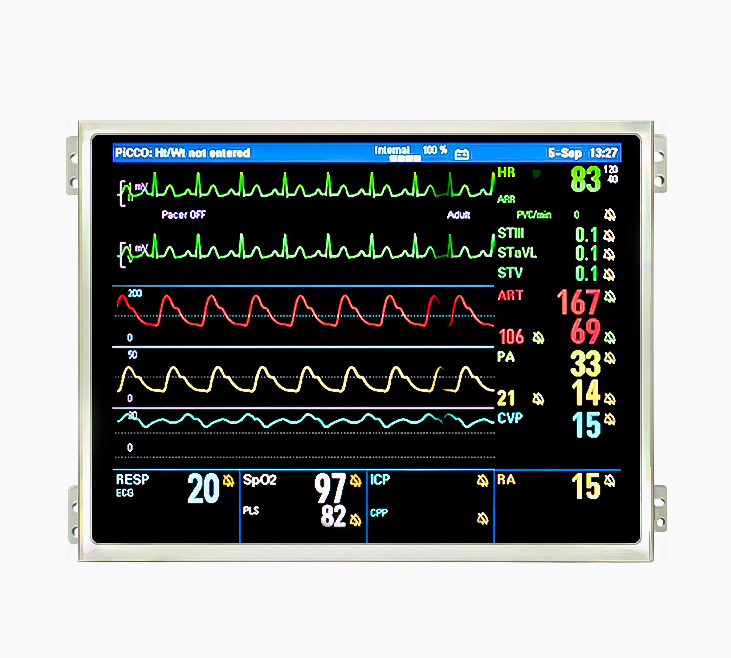

10.4 inch 1024x768 LCD display for patient monitor (HC104IM65065-B24V01)
